340 LPH @ 40 psi - Offset Inlet

---

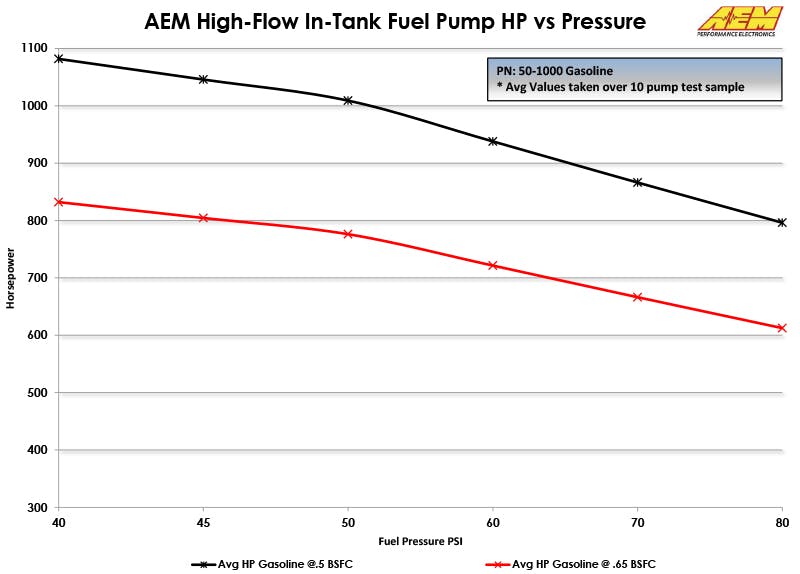

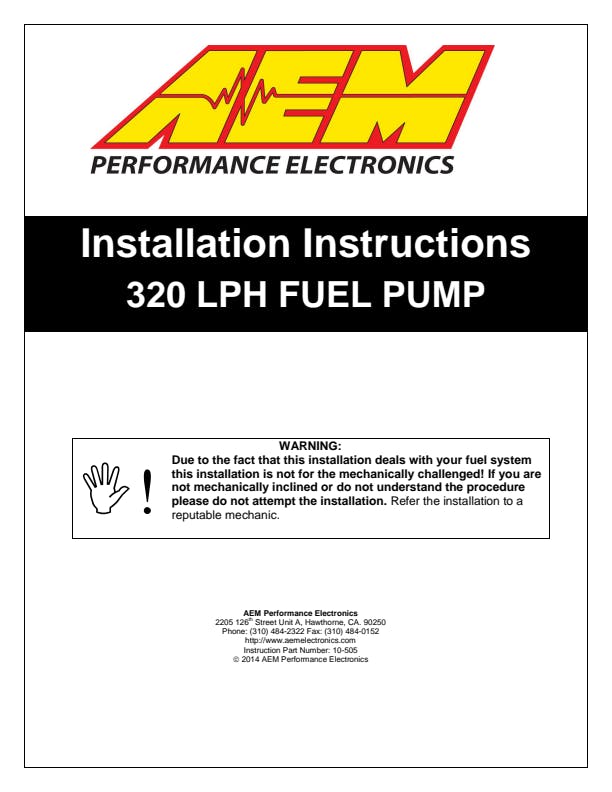

AEM's 340LPH High Flow In-Tank Fuel Pump is designed for high performance, naturally aspirated and forced induction EFI vehicles. It delivers reliable performance and a high volume of fuel flow for a very competitive price.The AEM 340LPH High Flow In-Tank Fuel Pump (PN 50-1000) flows 340 lph (84 gph) at 40 PSI and is capable of supporting over 1,000 HP at 43 PSI.* Please see the flow curves and current draw vs. fuel pressure graphs on the specs tab for more information.This fuel pump is designed for in-tank mounting for use with gasoline and features a compact 39mm diameter that fits most applications. It has an offset inlet design that eases installations and includes a wiring harness, pre filter, end cap and rubber buffer sleeve. Every pump is tested to flow 340 lph at 40 PSI before it is packaged for sale.AEM fuel pumps include a universal pre filter which may not fit certain vehicle applications. Please refer to the OEM recommendations for filter replacement for your vehicle.Your vehicle's factory fuel pump wiring may not be adequate enough to handle the current draw of AEM's High Flow Fuel Pumps. Please refer to the Electrical Requirements section in the instructions document for proper wiring.TECHNICAL SPECS:Weight: 12.5oz (354grams)Outside Diameter: 39mm ODExternal Materials: Black plated steel with laser etchingInlet Fitting: 7.7mm ID, 11.0mm OD. Offset InlineOutlet Fitting: 8 mm hose clamp. OffsetPRV Activation: 80 PSIImpeller Design: Single Scroll Ceramic TurbineVOLTAGE SPECS:Connector Terminal: 6 mm Spade (pos/neg)Min Voltage Input: 6 voltsMax Voltage Input: 18 voltsCurrent Draw (40 psi): 12 amps (13.5v)Current Draw (80 psi): 15 amps (13.5v)Fuse: 20 amps (13.5v)* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.

• Designed for high output naturally aspirated and forced induction EFI vehicles
• In-tank design
• Tested to flow 340 lph @ 40 PSI

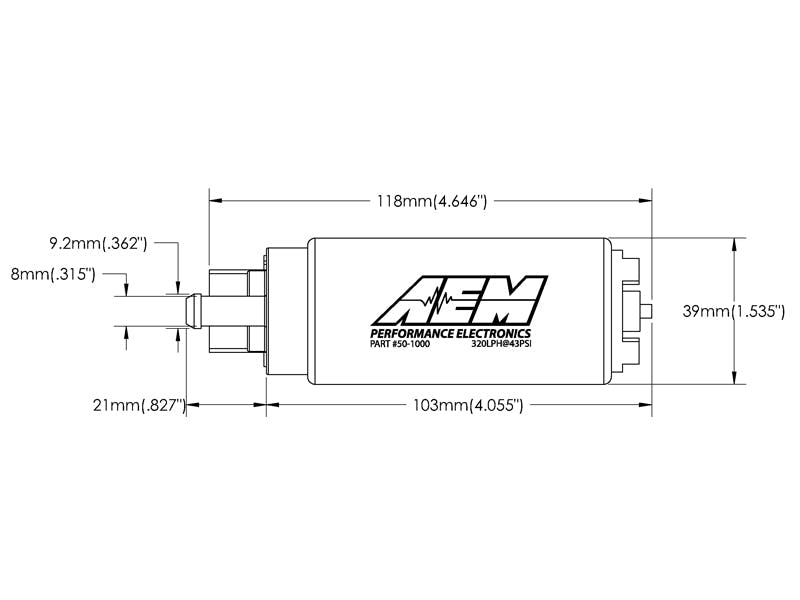

• 39mm diameter fits most applications
• Offset inlet design eases installation
• Each pump individually tested
• For gasoline vehicles
• Kit includes fuel pump, rubber sleeve and end caps, pre filter and flying lead

---

Information:

AEM does not condone or approve of the modification of a tank to accommodate a High Flow Fuel Pump and cannot guarantee the pump's performance or operation if any modifications are made.

---

Application Summary:

Year	Make/Model
1990-1998	Eagle Talon
2003-2004	Ford Crown Victoria
1999-2000	Ford F-150
1996-1997	Ford Mustang
1992-1999	Honda Civic
1997-2001	Honda Prelude
2010-2014	Hyundai Genesis Coupe
1997-2001	Hyundai Tiburon
2003-2008	Infiniti G35
1991-2001	Infiniti Q45
1997-2001	Jeep Cherokee
1997-2001	Jeep Grand Cherokee
1991-1995	Jeep Wrangler
1997-2004	Jeep Wrangler
2010-2014	Kia Forte
1993-2000	Lexus GS300
1998-2000	Lexus GS400
1992-2000	Lexus SC300
1996-2000	Lexus SC400
1990-1997	Mazda Miata
1999-2005	Mazda Miata
1993-1997	Mazda MX-6
1995-1998	Mazda Protege
2003-2004	Mercury Marauder
1985-1990	Mitsubishi Galant
1995-1998	Nissan 200SX
1990-1996	Nissan 300ZX
2003-2008	Nissan 350Z
1996-2001	Nissan Altima
1998-1999	Nissan Sentra
1990-1994	Plymouth Laser
1998-2007	Subaru Forester
1993-2001	Subaru Impreza
1990-2007	Subaru Legacy
1994-1998	Toyota Supra
